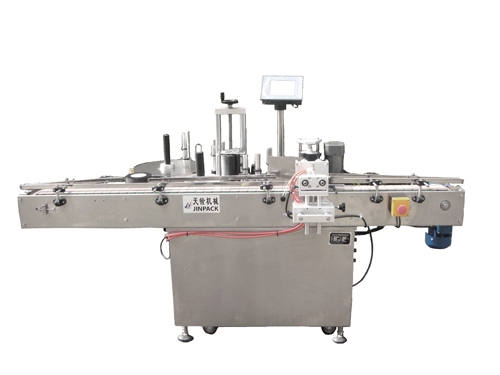

Automatic Wrap-around Positioning Labeling Machine Model No MT-515

Feature:

       1. PLC combined with human/machine interface digital LCD touch screen controller;

       2.Precision stepper motor driven on labeling head;

       3.Stainless steel frame construction and components are standard;

       4. Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling;

       5.Automatic infeed turntable diameter 550mm(Optional);

       6.  Hot foil printer is available(Optional)

Specification:

       1.       Model No: JT-515;

       2.       Label width: 10-130mm;

       3.       Labeling speed: 0-25 M/Min;

       4.       Infeed turntable diameter: ?550mm;

       5.       Bottle diameter: Below 100mm;

       6.       Labeling accuracy: ±1mm;

       7.       Power supply: 450W , 110V/220V , 50/60HZ;

       8.       Machine size: L1500 * W650 * H1450 mm

       9.       Reel Inner diameter: 75mm;

      10.    Reel outer diameter: Max 360mm

      11.    Net weight: 115kg
